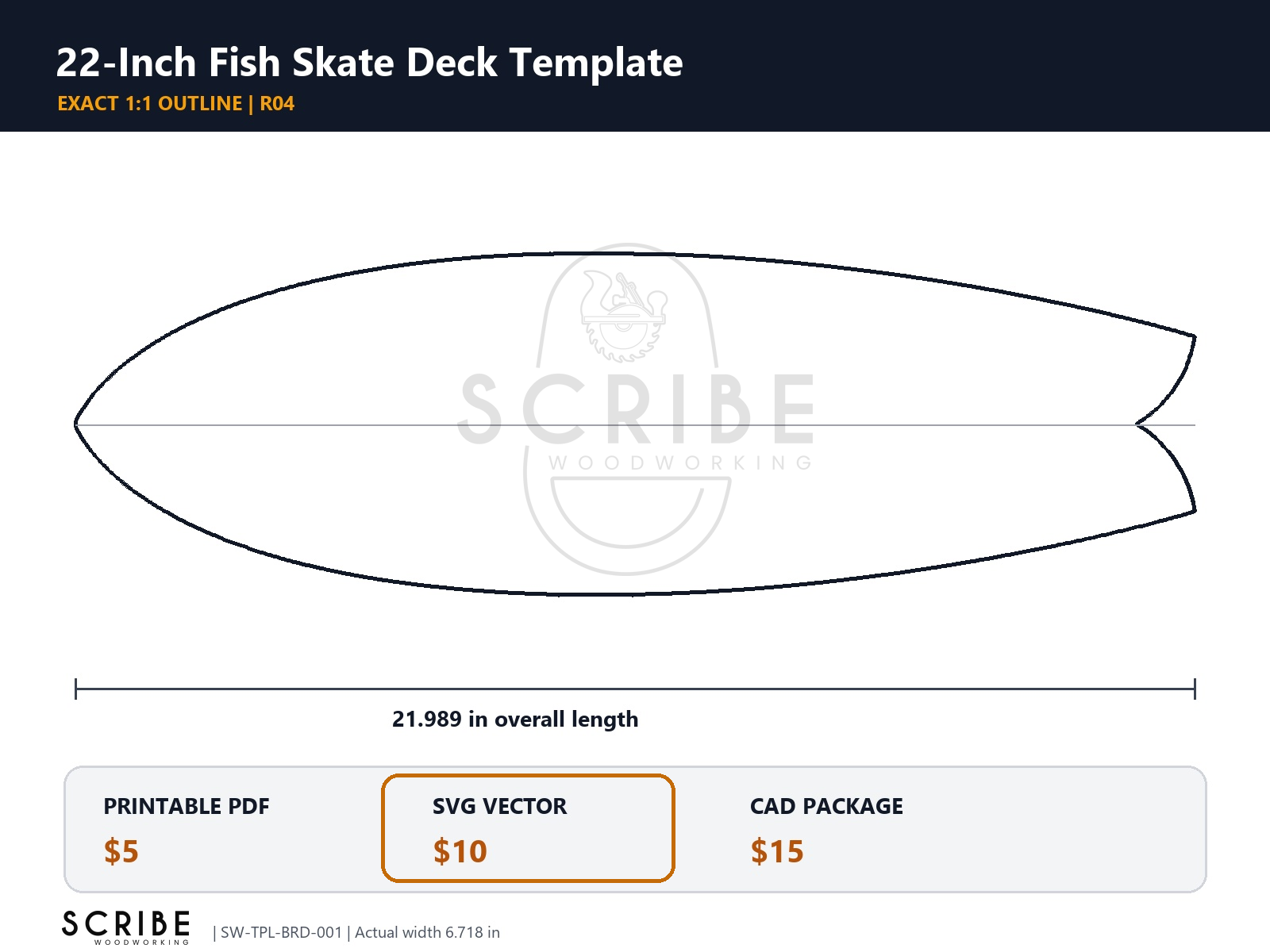

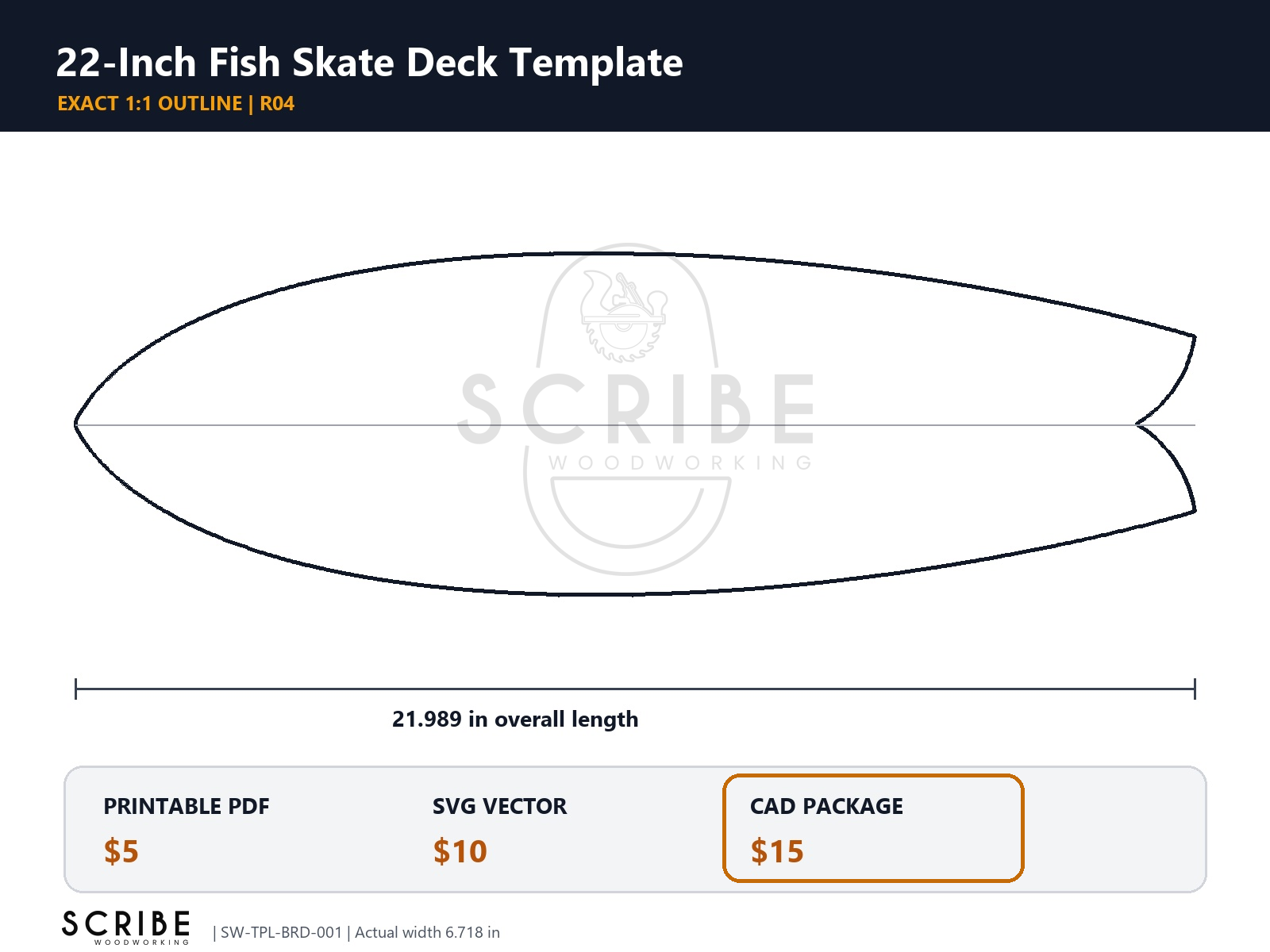

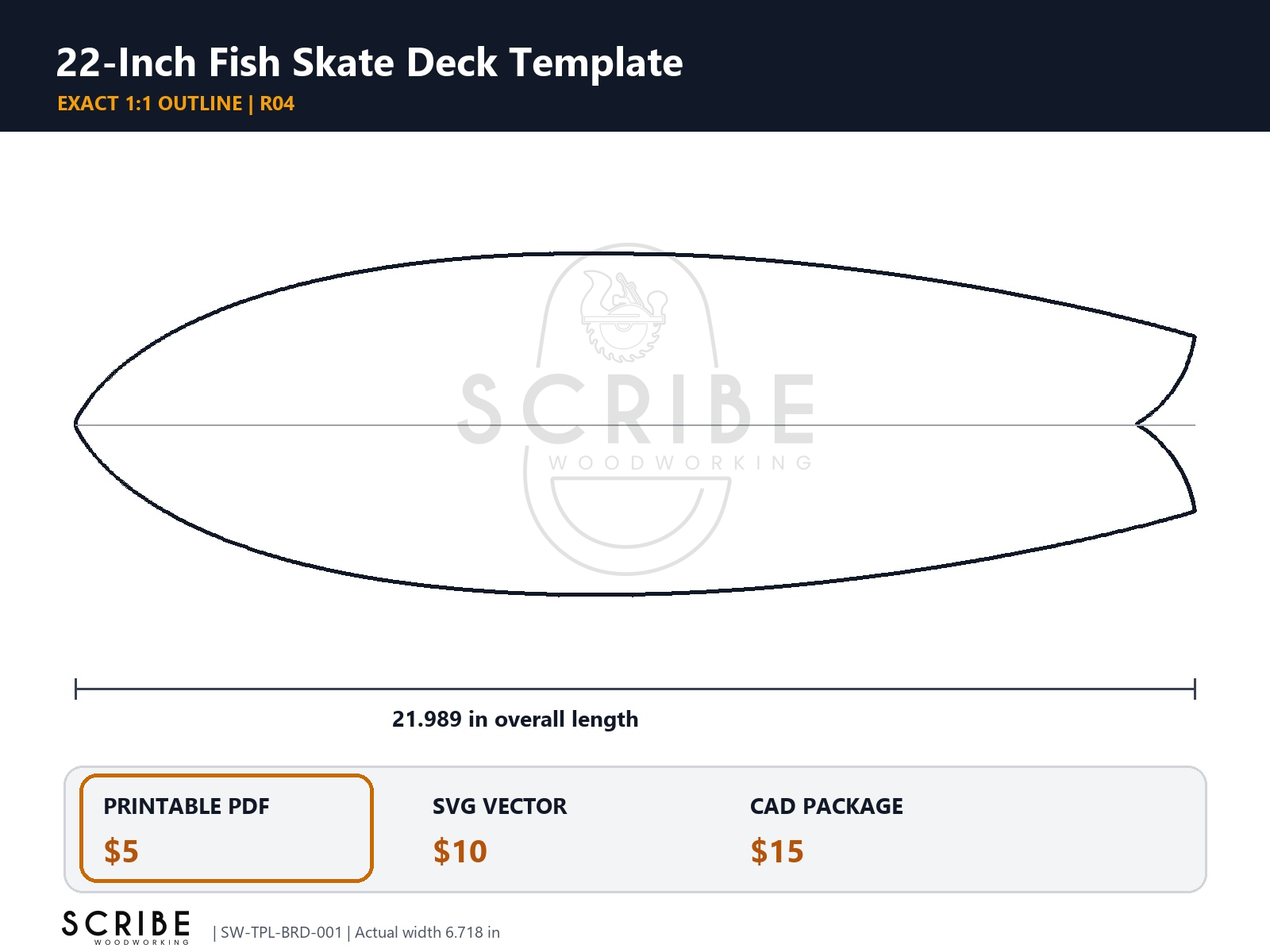

22-Inch Fish Skate Deck Template

Build an exact full-size template from Scribe's original CAD geometry.

• Nominal length: 22 inches
• Actual CAD size: 21.9889 x 6.7181 inches
• Catalog type: Full Size
• Revision: R04
• Personal-use license included

The Printable PDF uses tiled 8.5 x 11 inch pages with an assembly map, overlap guides, alignment crosses, centerline, and calibration marks. Print at 100% / Actual Size.

The CAD package includes DWG and DXF files in inches. Verify all dimensions and fabricate a physical prototype before riding or selling a completed board.
